Interior fit-out of an existing ~580 SF studio apartment shell, delivered as a complete nine-sheet construction set: existing conditions, proposed plan, furniture plan with clearance details, reflected ceiling plan, interior elevations, finish and fixture schedules, and a documented design process with five furniture schemes tested before the selected layout.

Sheet index and cover with axonometric
Proposed floor plan with plumbing fixture tags
Furniture plan with ADA clearance details
Reflected ceiling plan with fixture legend
Interior elevations with keynotes
Room finish, plumbing, and lighting schedules

Full sheet set (PDF)

Other files

← AutoCAD Drawings → Interior Concept Boards

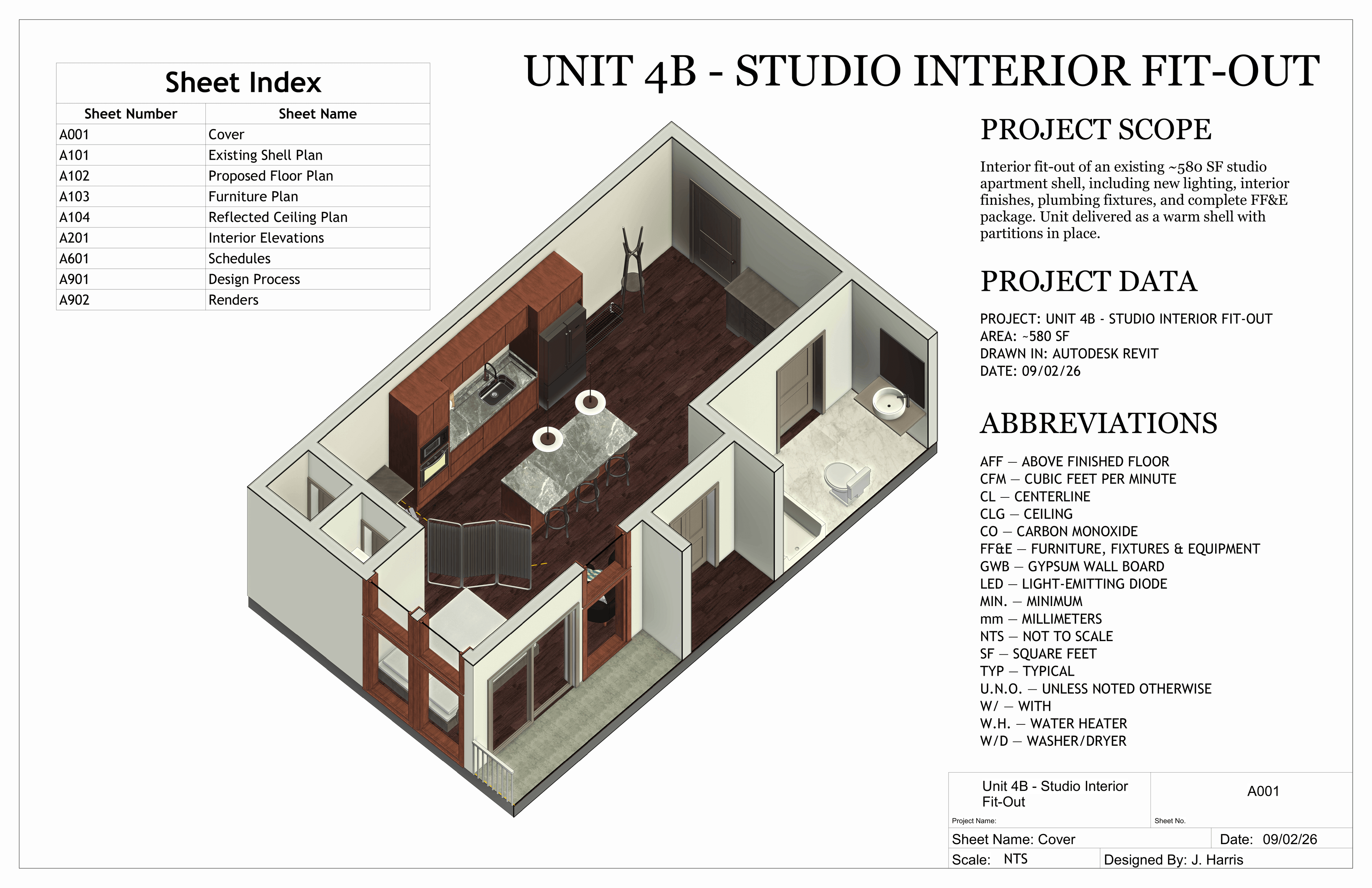

Unit 4B Studio Interior Fit-Out: A001 - Cover. Sheet index, project scope, abbreviations, and axonometric of the fitted-out unit.

A001 - CoverSheet index, project scope, abbreviations, and axonometric of the fitted-out unit.1 of 9scroll to zoom · drag to pan · double-click to fit · ← → sheets
